Access Point Power Beam M5 Ubiquiti 5.8ghz Pbe-M5-300 #6

Access Point Power Beam M5 Ubiquiti 5.8ghz Pbe-M5-300 #6
PBE-M5-300

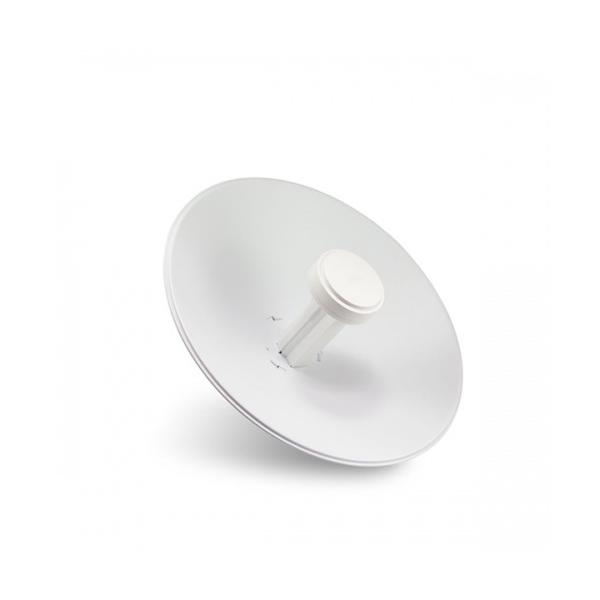

Access Point Power Beam M5 Ubiquiti 5.8ghz Pbe-M5-300
ACCESS POINT INTEGRADO CON ANTENA PARABOLA SOLIDA
-FRECUENCIA 5,8GHZ AC
-MIMO 2X2
-GANANCIA ANTENA DE 29DBI
-INCLUYE RADOME
-POTENCIA DE 200MW
-INCLUYE FUENTE INYECTORA DE 24V 0,5A
Ubiquiti
Access Point Power Beam M5 Ubiquiti 5.8ghz Pbe-M5-300 #6
PBE-M5-300
Descripción

Access Point Power Beam M5 Ubiquiti 5.8ghz Pbe-M5-300

- Puente de alto rendimiento AirMAX®
Incorporando un diseño reflector de plato con tecnología avanzada, el PowerBeam ™
es la última generación de CPE de AirMax® Ubiquiti Networks® para las ubicaciones de los clientes.
- Diseño Integrado de Radio:
La tecnología InnerFeed® de Ubiquiti integra la radio en el canal de alimentación de una antena,
por lo que no hay necesidad de cables para conectar la radio a la antena. Esto mejora el rendimiento porque elimina las pérdidas de cable.

Ficha técnicaAccess Point Power Beam M5 Ubiquiti 5.8ghz Pbe-M5-300
- PBE-M5-300
- Dimensions 325 x 325 x 256 mm (12.80 x 12.80 x 10.08 )
- Weight 1.203 kg (2.65 lb)
- Power Supply 24V, 0.5A PoE
- Max. Power Consumption 6W
- Operating Frequency Worldwide USA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3
5150 - 5875 MHz 5150 - 5250 MHz* 5250 - 5350 MHz* 5470 - 5725 MHz* 5725 - 5850 MHz*
Gain 22 dBi
- Networking Interface (1) 10/100 Ethernet Port
- Processor Specs Atheros MIPS 74Kc, 560 MHz
- Memory 64 MB DDR2, 8 MB Flash
- LEDs (1) Power, (1) LAN, (4) WLAN
- Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
- Max. VSWR 1.5:1
- Channel Sizes 5/8/10/20/30/40 MHz
- Polarization Dual Linear
- Enclosure Outdoor UV Stabilized Plastic
- Mounting Pole-Mount (Kit Included)
- Wind Loading 145.2 N @ 120 km/h (33 lbf @ 75 mph)
- Wind Survivability 120 km/h (75 mph)
- ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
- Operating Temperature -40 to 70° C (-40 to 158° F)
- Operating Humidity 5 to 95% Noncondensing
- Wireless Approvals FCC, IC, CE
- RoHS Compliance Yes
- Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
- Vibration Test IEC 68-2-6
- Temperature Shock Test IEC 68-2-14
- UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
- Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
