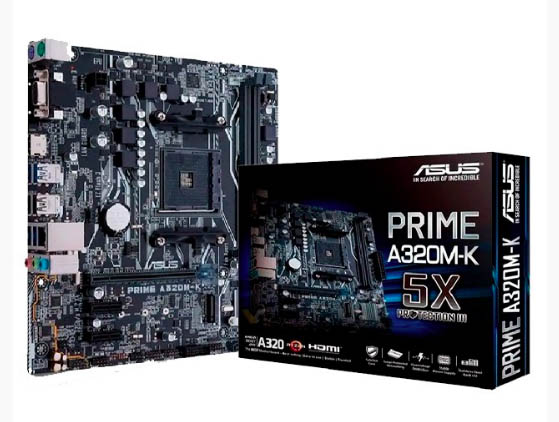

Marca: ASUS
Modelo: PRIME A320M-K
Socket: AM4 (AMD Ryzen™)
Chipset: AMD A320
Soporte de Procesadores:
- AMD Ryzen™ processor
- AMD 7th Generation A-series/ Athlon™ processor
- Soporta CPU de hasta 8 cores
Memoria:
Procesadores AMD Ryzen™:
2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Procesadores AMD 7th Generation A-series/Athlon™:
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Arquitectura de memoria Dual Channel
Gráficos:
Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU:
- 1 x HDMI 1.4b supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- 1 x RGB supporting a maximum resolution of 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 2 GB
Puertos de expansión:
Procesadores AMD Ryzen™:
1 x PCIe 3.0/2.0 x16 (x16 mode)
Procesadores AMD 7th Generation A-series/Athlon™:
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B350 chipset:
2 x PCIe 2.0 x1
Almacenamiento:
AMD B350 chipset:
4 x SATA 6Gb/s port(s), gray
Soporte para Raid 0, 1, 10
Procesadores AMD Ryzen™:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
Procesadores AMD 7th Generation A-series/Athlon™:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
USB:
Procesadores AMD Ryzen™/7th Generation A-series/Athlon™:
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD B350 chipset:
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B350 chipset:
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
